C4 Fabrication - Overland Series Front Bumper - Toyota Tundra (2014-2021)
- C4 Fabrication
- Regular price
- Sale price
- $1,460.00 Sale
Shipping calculated at checkout.
Quantity must be 1 or more
PRODUCTION TIME: 10 WEEKS.
ALL CANCELS ARE SUBJECT TO A 20% CANCELLATION FEE.
All COLORADO local pick-up orders for the Tundra C4 Overland Series Front Bumper are subject to a $249 transport fee.
Ships to the freight hub nearest the customer's residential address unless a commercial address is provided in which case the product can be sent directly to the commercial address. Please specify the business name if needed.

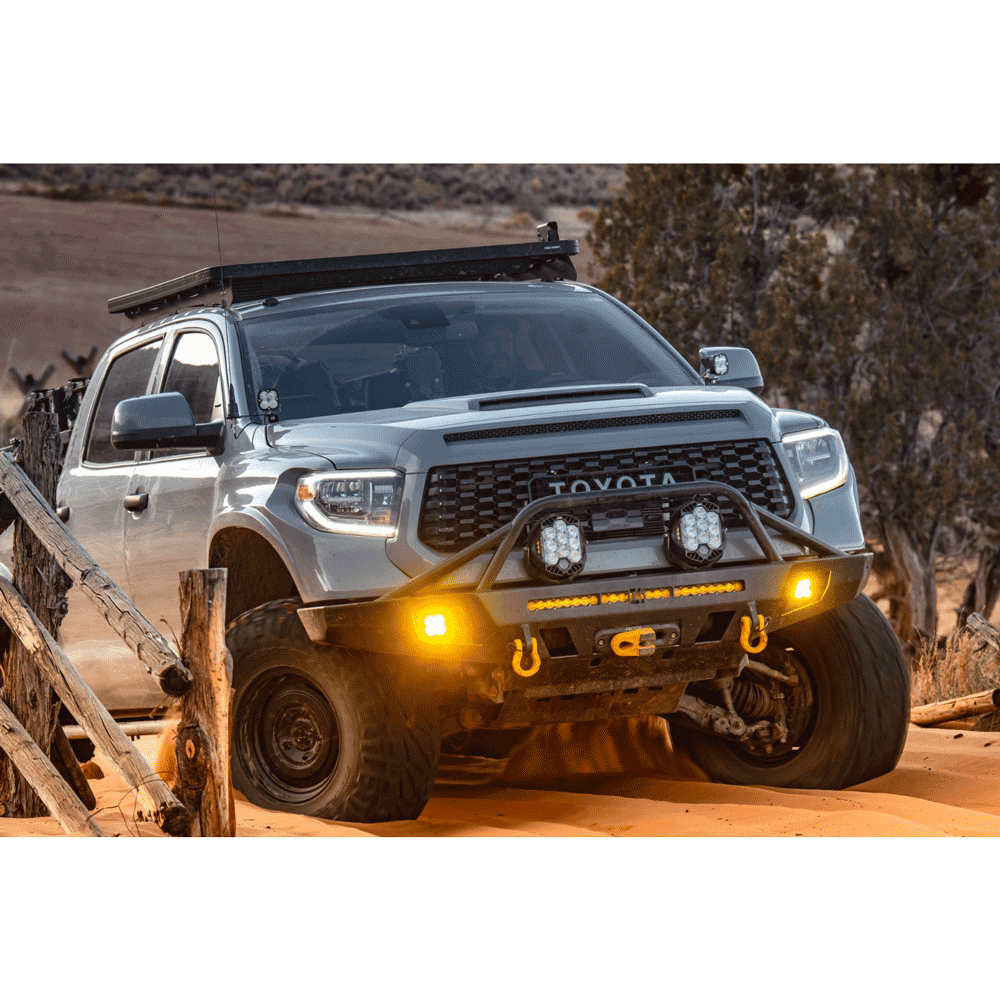

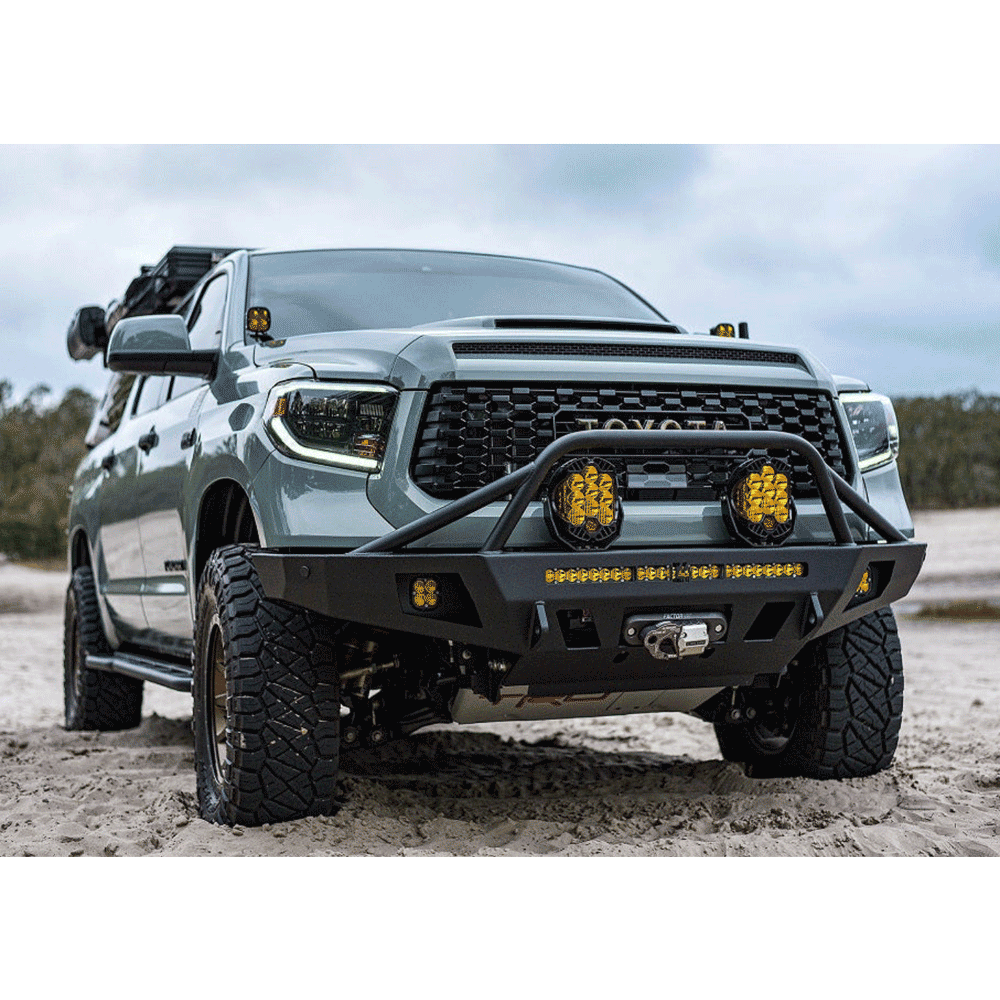

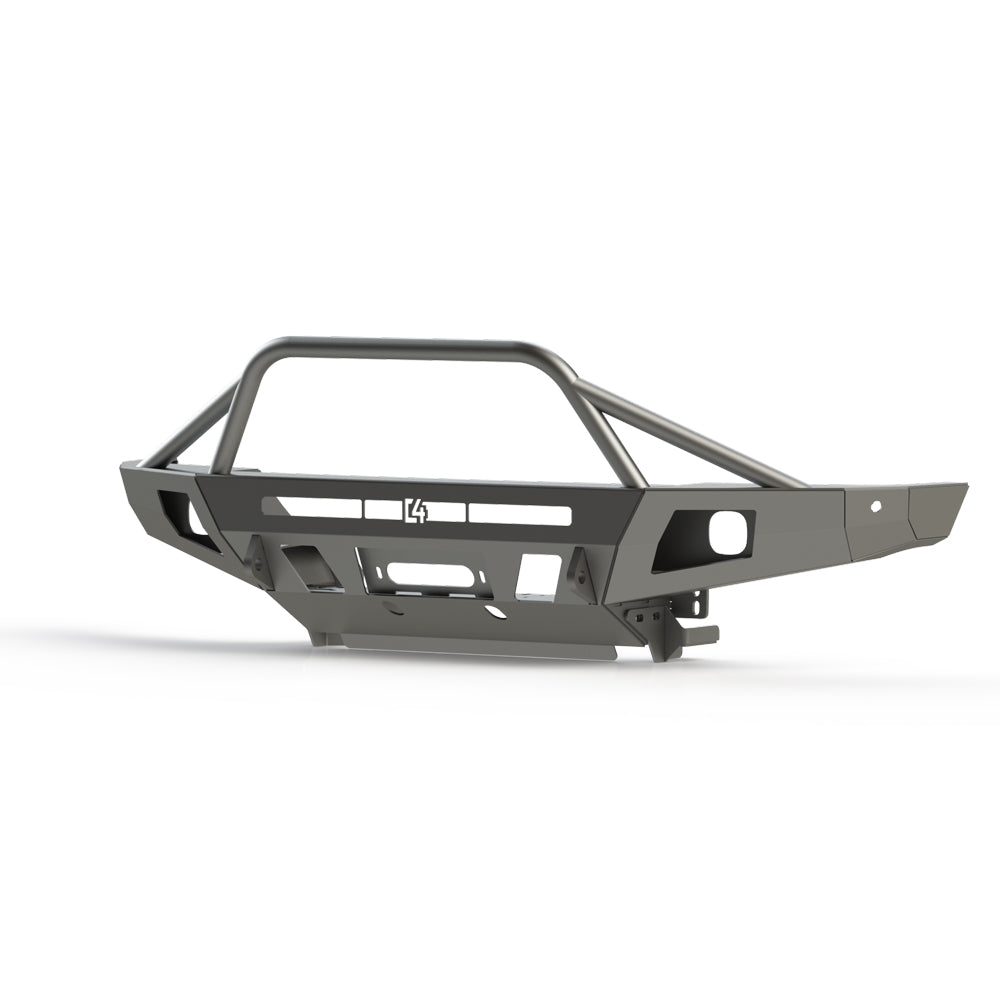

2014+ Tundra Overland Bumper
- Bumper offers more clearance for better approach angles and makes it easier to fit larger tires.

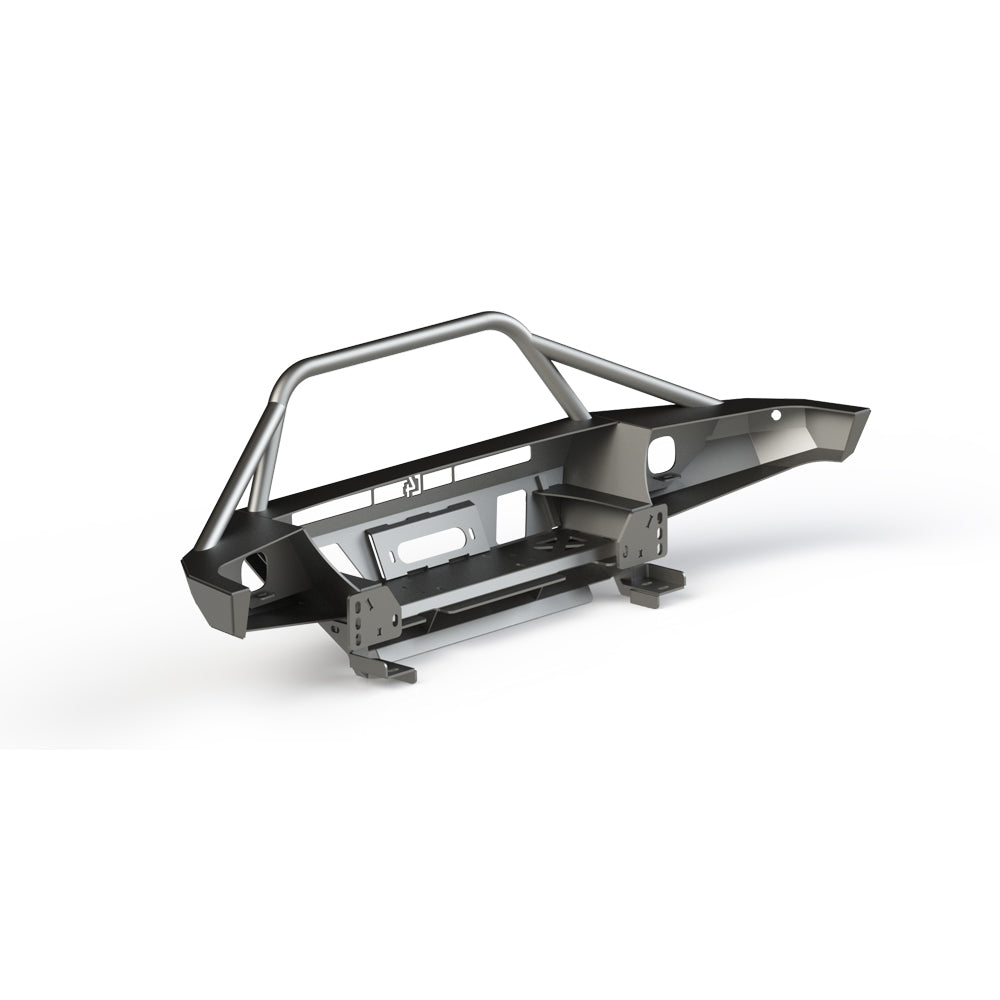

- The bumper is made from 3/16″ laser-cut P&O steel with 3/8″ thick mounting plates and 1/4″ thick winch plate.
- 3/4″ thick D-Ring tabs standard on every bumper and come fully welded front and back.
- Bullbar tubing is .120 wall 1 3/4″ diameter HREW tubing.

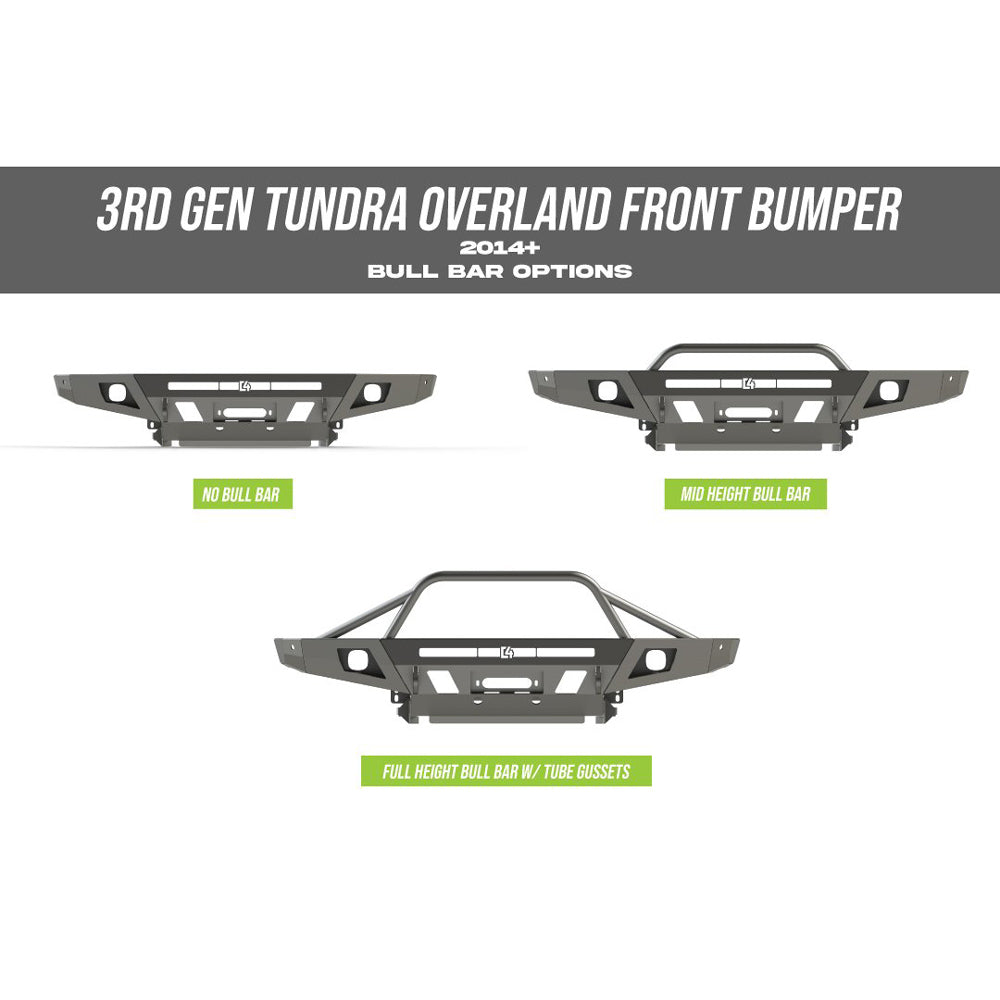

- The full-height bull bar will work with TSS in TRD Pro grilles only. Bullbar will block the TSS sensor on regular grilles.
- Mid-height bull bar works with TSS on all models
- Fits most winches 8k-12k in size. Winches with the ability to relocate the electrical control box are recommended. Integrated control box winches may require some trimming of the grille support brackets to fit. (ComeUp, Smittybilt X20, Warn Zeon, and VR series are all common winches that fit).
- We recommend using winches with synthetic rope and a hawse style fairlead for the best fitment and functionality. Some roller fairleads may be too large to fit the recessed fairlead mounting plate in the bumper.
- Works with TRD Pro skid plate and aftermarket skid plates.
- Comes with holes for parking sensors.
- LED cutout and mounting tabs designed to work with Baja Designs S8 30″ light and Rigid SR series 30″. All other brands of lights are not guaranteed to fit properly.

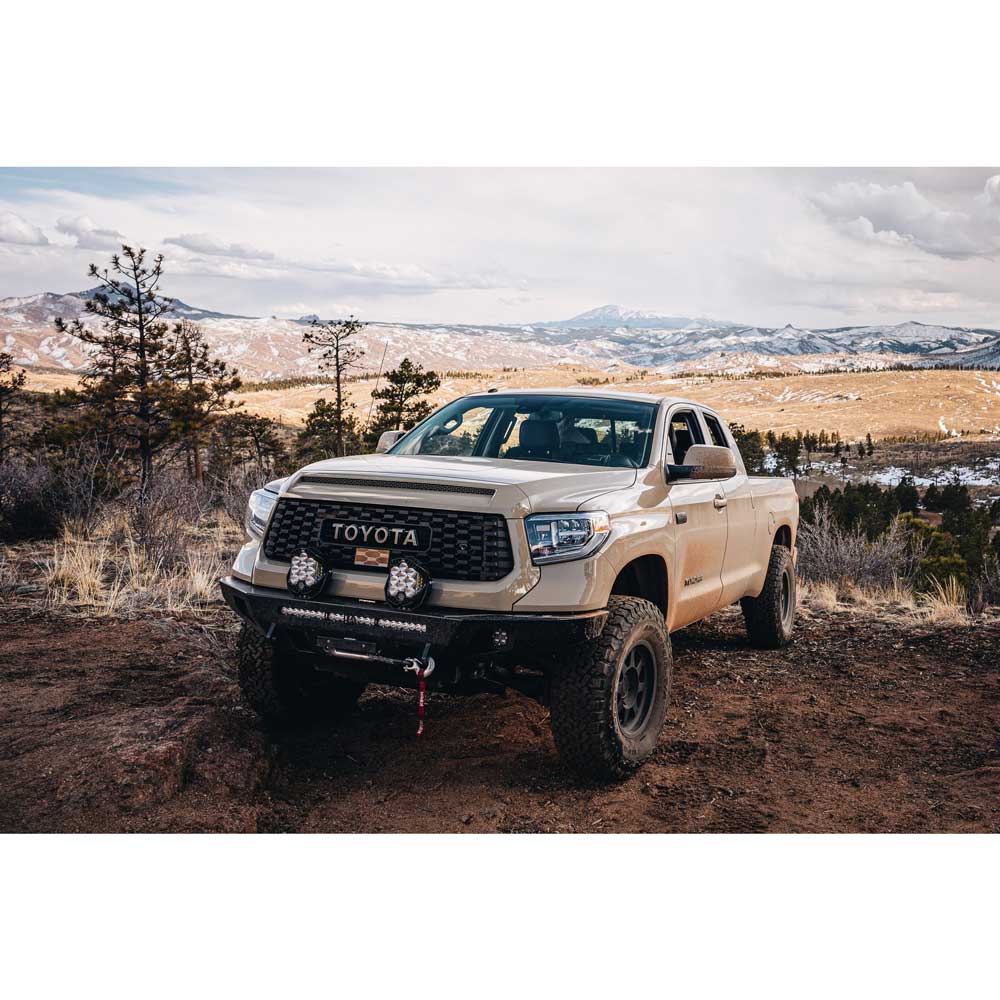

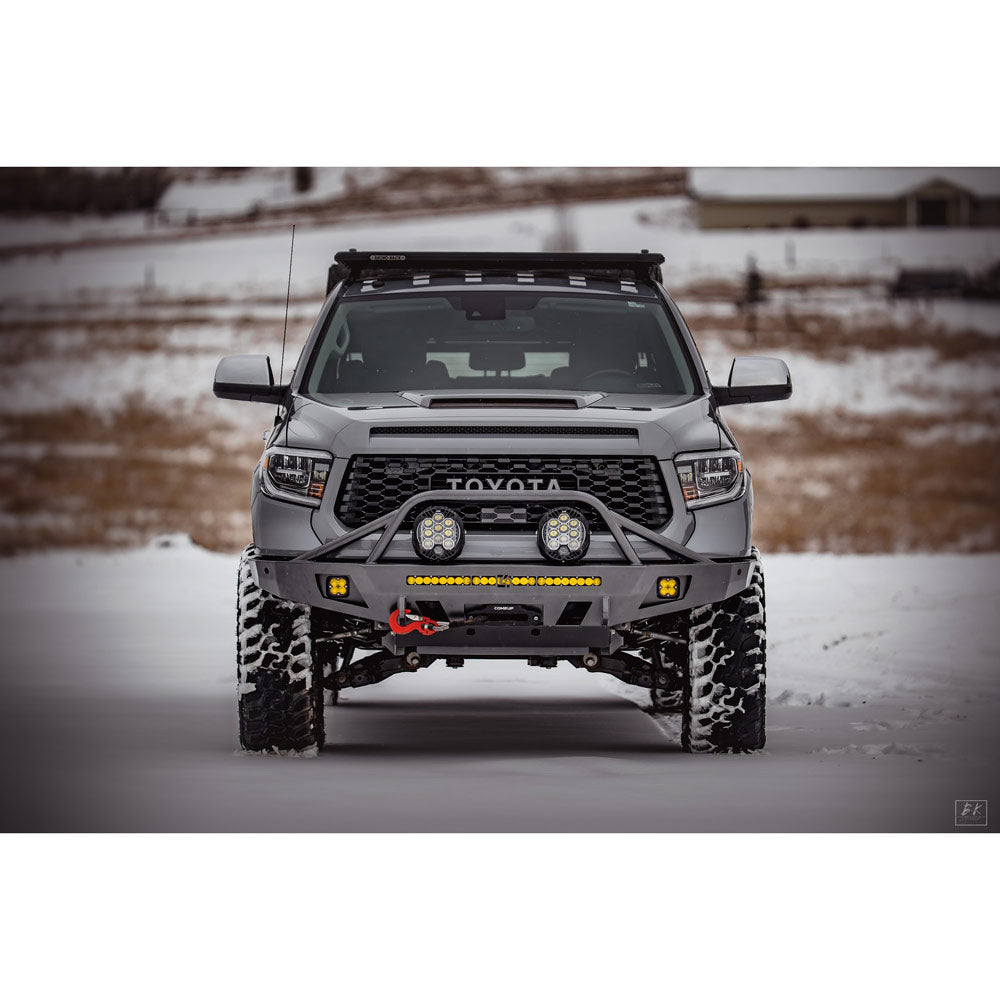

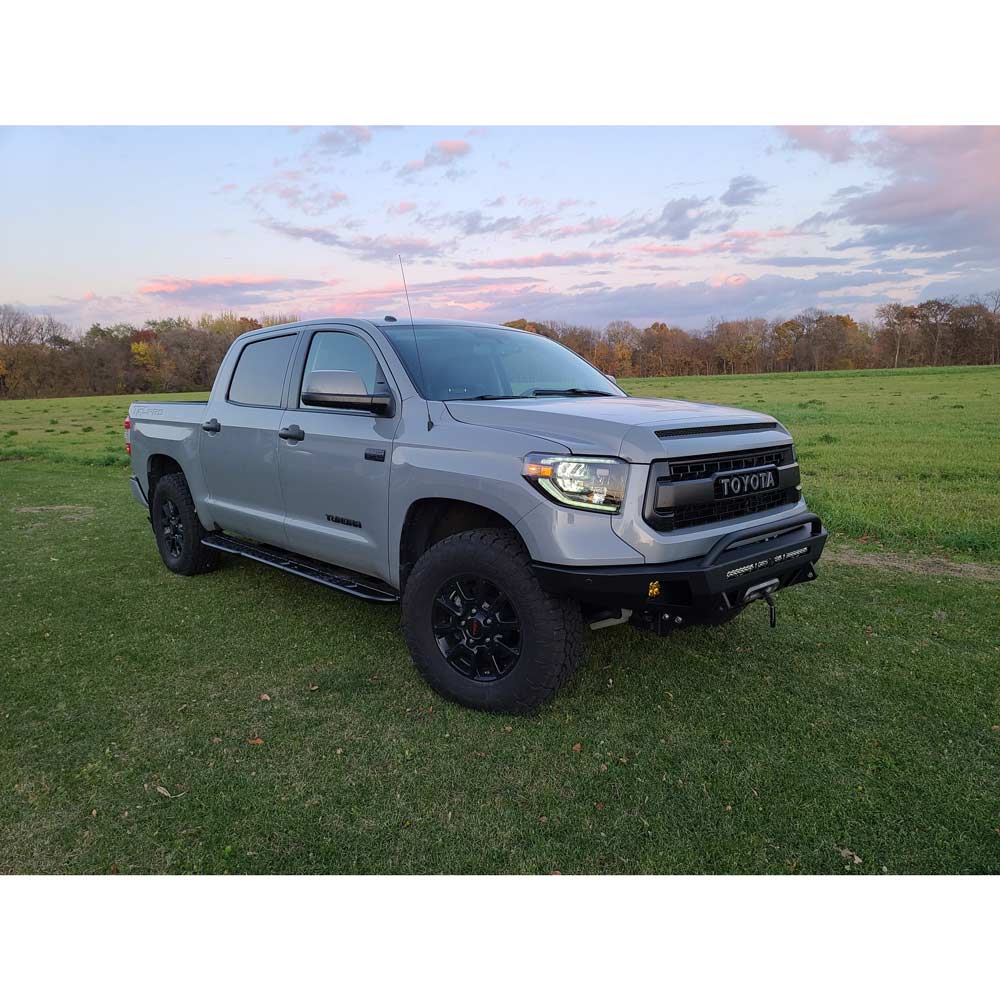

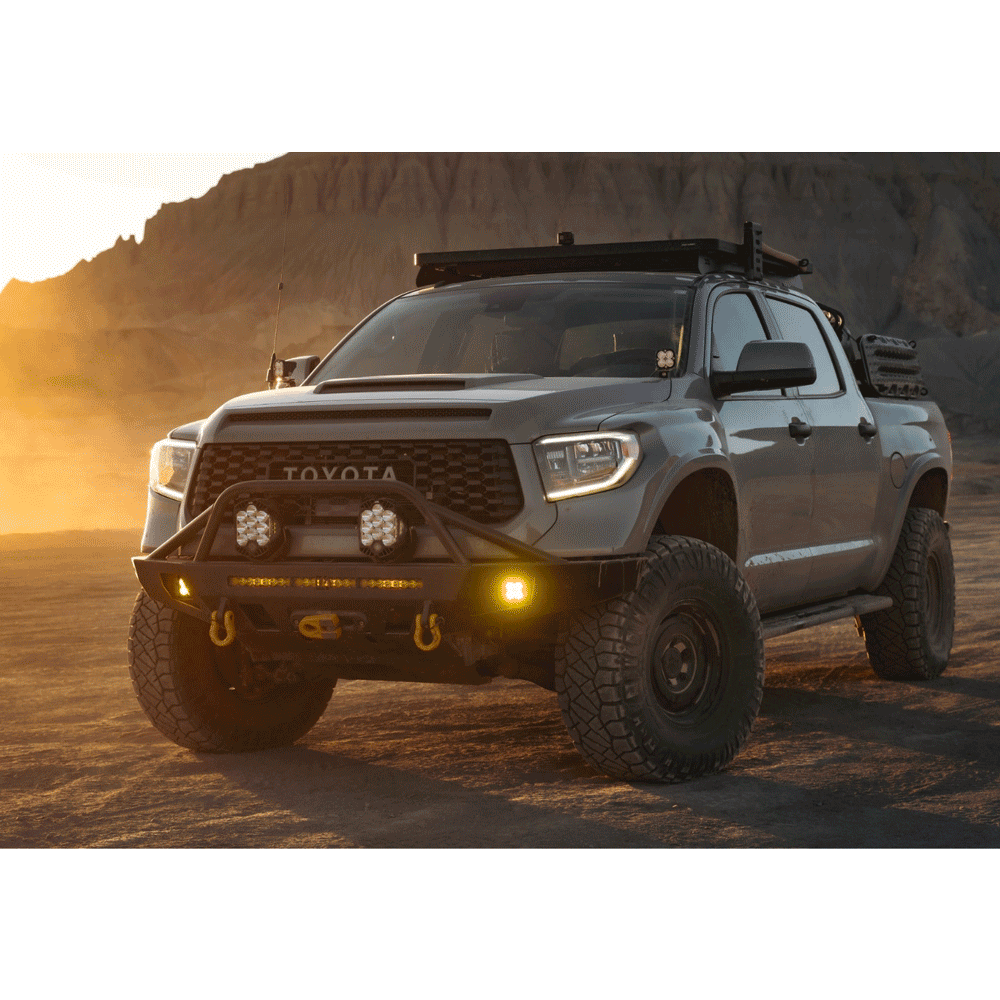

- The bumper comes pre-drilled for a pair of LP9 or LP6 lights in front of the grille. The LP9 lights will work with the full-height bull bar as well as no bull bar. The light placement is known to work with TSS on TRD Pro grilles. (Please see photos of the grey or tan Tundra for light placement)
- This bumper is a direct bolt-on application. No cutting or modifications needed.
- Weighs 165lbs without bullbar, 180lbs with full height bull bar.

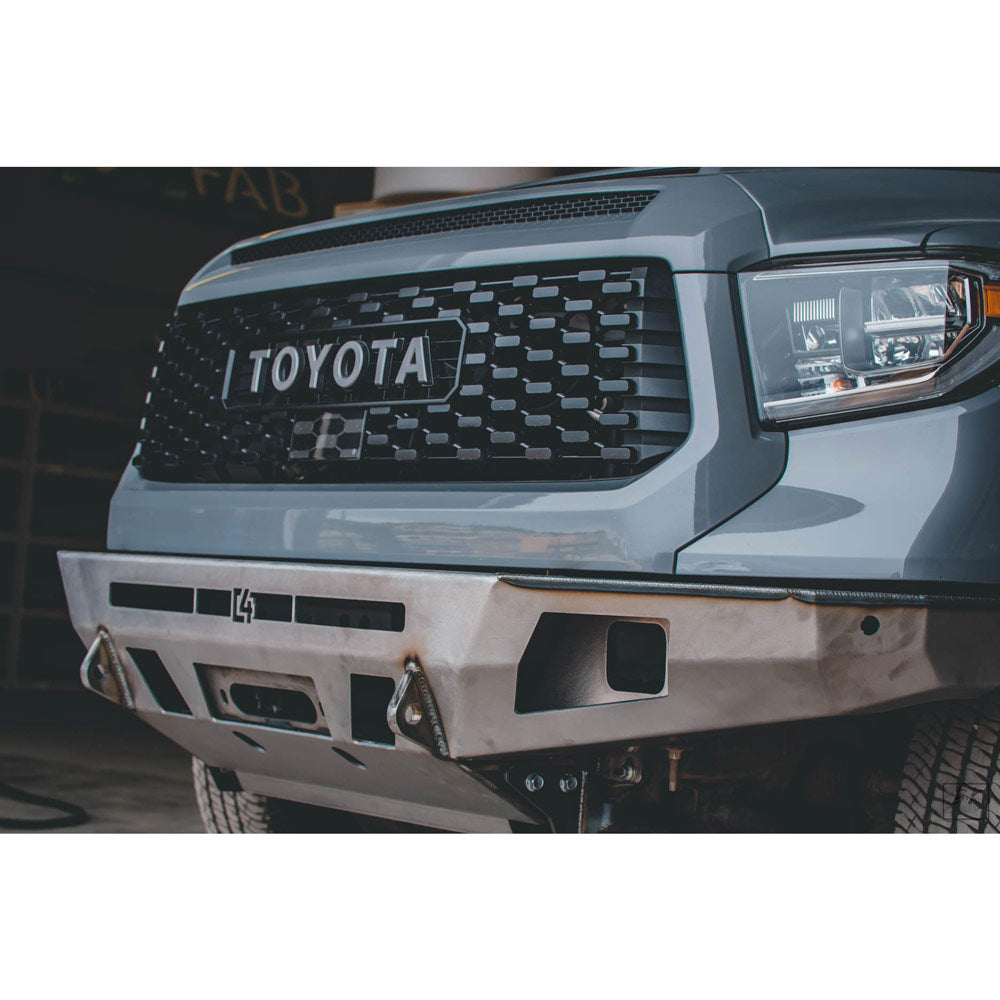

- SHIPS BARE STEEL, powder coat finish not available. The product will need to be painted or powder coated to prevent rusting.
